1/2 rigging block with ultra sling

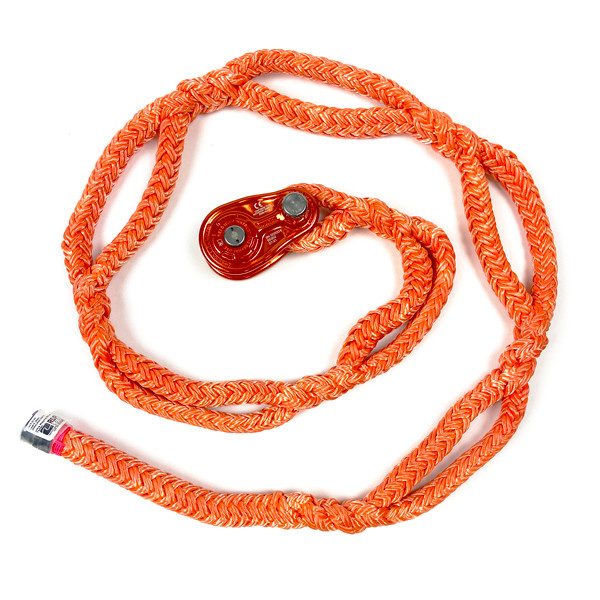

1/2" Rigging Block With 5/8" Ultra Sling

SKU: ST-51257Barcode: 723466956680

CA$442.99

Summary

The Rope Logic Ultra Sling with Notch 1/2" Riggin Block is a small sized lightweight arborist block that accepts working lines up to 1/2” (13mm) diameter.

Brand

Categories

Types

Description

  • 20 kN WLL / 100 kN MBS
  • Hot forged aluminum side plates with rope friendly rounded cheeks
  • Precision CNC machined aluminum sheaves with wide bend radii
  • Low profile, secure, easy to-open captive screw pin lock
  • High wall, full diameter, improved anchor sling protection
  • Wide, concave upper sheave accepts 5/8” anchor slings
  • Flared side-plates reduce twisting in complex rigging scenarios

Product features

  • WORKING LOAD LIMIT (WLL) 20 kN (4,496 lbs.)
  • MBS 100 kN (22,480 lbs.)
  • MAX WORKING LINE DIAMETER 1/2 in (13mm)
  • MAX SLING DIAMETER 5/8 in (16mm)
  • UPPER SHEAVE DIAMETER .75 in (19mm)
  • LOWER SHEAVE DIAMETER 1.5 in (38mm)
  • HEIGHT 4.7 in (118mm)
  • WIDTH 2.7 in (68mm)
  • WEIGHT 1 lb. (.45kg)
  • SIDEPLATE MATERIAL Aluminum
  • SHEAVE MATERIAL Aluminum
  • AXLE MATERIAL Stainless Steel
